Dashboard Row Orientation

Goal: UX/Functional

Developer: cloudempiere, Takacs Peter, Design: Norbert Bede Review: Hengsin Low

Feature Ticket: IDEMPIERE-5389

Improvement

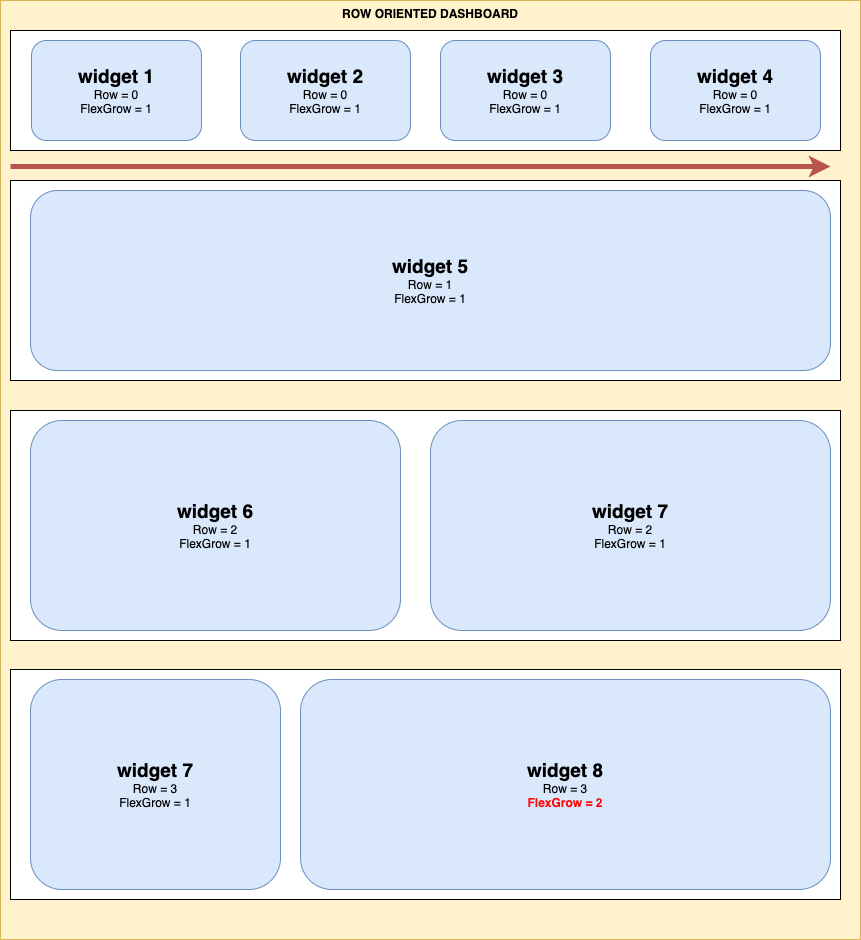

This feature allows you to arrange dashboard modules/gadgets into rows. The image illustrate a potential layout with various row organisation. The solution supports drag and drop and re-organisation by mouse, for different widget width must be set proper flex-grow value. read more. Dashboard row concept

Dashboard-row-concept

Note: The solution still supports column orientation.

Changes

  • New sysconfig added: DASHBOARD_LAYOUT_ORIENTATION - R = Row C = Column (default/fallback)
  • Dasboard Preference new field: FlexGrow - default 1

Setup: DASHBOARD_LAYOUT_ORIENTATION must be set to 'R'

Example Use-case: the next example illustrate flexible flex based 1-3-1 layout. In this case user must set flex-grow field for KPI2 to 3 Dashboard row 1 3 1 Row orientation example

Row-orientation example including charts
